Remote Weapon Station RWS Uprava – Kord

RWS Uprava – Kord is a gyro – stabilized, automated control complex for machine guns on any mobile carrier or stationary positions.

RWS Components

  • Gyro – stabilized optical – electronic module (GEOM) including optical – Tasks covered by RWS electronic channels for target detection, acquisition and auto – tracking;
  • Combat module (CM) including a base (barbette), a guided platform with mobile gun attachment frame, gyro unit and TV sight.
  • Data output and interface unit; Video monitor, main control panel with a joystick, additional control panel for GEOM can be supplied on request.
Get Quotes

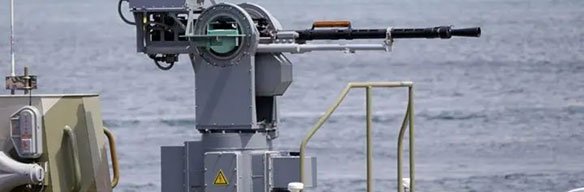

RWS Uprava-Kord installed on naval vessel

Tasks Covered By RWS

  • Semi – automatic detection and acquisition of air, above – water and surface targets; Semi – automatic and automatic tracking of detected targets (SAT and AT); Software – aided data generation for firing operations taking into account carrier and target movement, bullet flight trajectory, prohibited shooting sectors;
  • Semi – automatic shooting with one of the following machine guns: ]] Large – caliber 12.7 mm machine gun Kord; ]] Large – caliber 14.5 mm Vladimirov tank machine gun (VTMG) and others;
  • Fire correction in case of miss – fire and sight correction for warning fire;
  • Semi – automatic recharge;
  • Calculation of spent and remaining shots.

GEOM Technical Parameters

  • Maximum field of vision: ]] ±(200 ± 1) angular degrees in horizontal direction; ]] From −25 to +60 angular degrees elevation;
  • Target detection range: ]] LF T, boat is up to 3 km; ]] man (swimmer) is up to 500 (100) m;
  • Automatic and semiautomatic target tracking range up to 2 km;
  • Target illumination range up to 2 km;
  • GEOM line – of – sight changeover rate in horizontal and elevation direction is up to 60 angular degrees/sec;
  • RMS error of angular coordinate measurements is 1 angular minute maximum.

CM Technical Parameters

  • Maximum firing field: ]]±(200 ± 1) angular degrees in horizontal direction; ]]From −25 to +60 angular degrees elevation;
  • CM turn rate in horizontal and elevation direction is up to 60 angular degrees/sec;
  • Target detection range up to 3 km;
  • Firing range is in accordance with combat characteris tics of Kord and VTMG;
  • Fire dispersion is better than on a rack and a mount;
  • Sweep radius in horizontal direction with VTMG installed is 1355 mm, with Kord is 1160 mm;
  • Overall height is 1130 mm maximum;
  • RCM weight with VTMG installed is 200 kg maximum, with Kord installed is 175 kg (without ammunition load);
  • Loaded belt box for 50, 100 or 200 rounds.
